Video editing mode

Status: ✅ built (branch feature/video-editor, 2026-10-14) · ADR: 0191 · Depends on: Gameplay recording (the recorder, the .mfcap.json sidecar and Record from the editor), Song tab (the canvas, SubViewport and job patterns this copies), Audio (AudioStreamGenerator) · Related: Video playback (G16, games only; not used here), ADR 0190 (ffmpeg as a child process)

Purpose

The editor records gameplay (F10). Turning a recording into promo footage means trimming dead air and idle gameplay, transcribing speech, removing filler words and exporting the result: what Cutback does as a separate app. The editor now does all of it in a video mode. A Game|Video toggle switches the whole editor UI between the game-engine editor and the video editor; music mode (the song tabs, ADR 0192) works the same way.

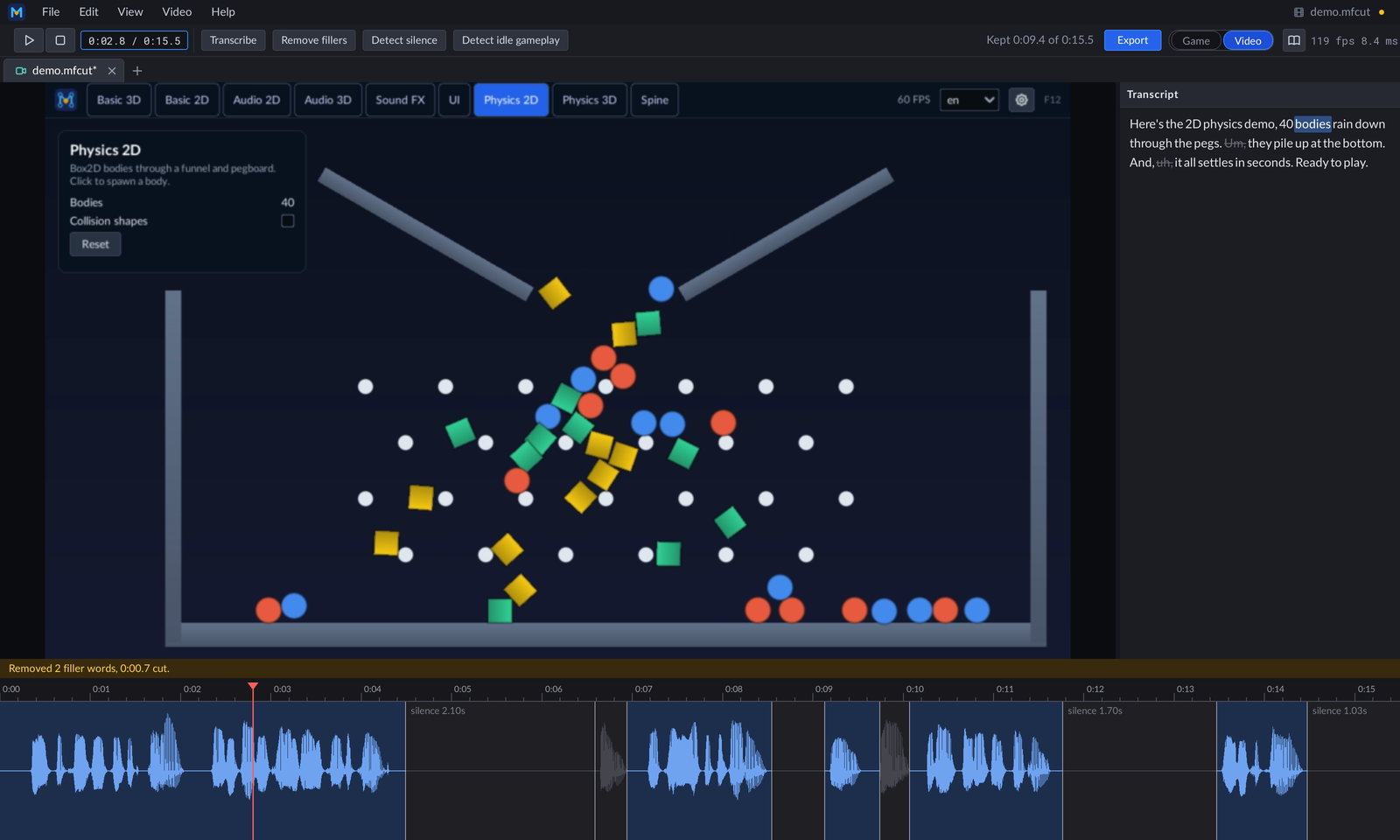

A recording of the Demo’s Physics 2D scene with a short narration (just readme-screenshots): Detect Silence cut the pauses, Transcribe wrote the transcript, and Remove Fillers cut the “um” and “uh” (struck through, greyed on the timeline).

Cutback’s logic is copied into the engine (Cutback.Core, Cutback.Media and Cutback.Analysis are MIT, written by the same author), not consumed as packages. The Cutback repository and its Avalonia app are not touched, and the recording dialog still offers Open in Cutback beside Open in Video Editor.

Not in scope, by design:

• no multi-track timeline, transitions, titles, effects or music beds (Cutback’s “not an NLE” rule);
• no Claude analysis (Cutback’s ICutSuggester is a stub and is not ported);
• no change to games: neither the runtime nor shipped games reference any of this.

Code layout

MainframeEngine.Video/                    editor-only library, net10.0, MIT (LICENSE-CUTBACK); only the editor references it
  SegmentList.cs  SegmentEditor.cs  EditHistory.cs                 ← Cutback.Core root files, plus SegmentEditor
  Models/ Capture/ Detection/ Transcript/ Projects/ Playback/        ← Cutback.Core (CutbackProject is VideoProject)
  Media/   (FfmpegLocator, MediaProbe + FfprobeJson, WaveformExtractor, PcmExtractor, SilenceDetector, FfmpegProcess, …)
  Media/Export/ (Exporter, FilterGraphBuilder, KeyframeSnapper, DeliveryEncoder)
  Media/Preview/PreviewDecoding.cs
  Analysis/ (ITranscriber, WhisperTranscriber, WordAssembler, ModelStore, WhisperModel)
Tests/MainframeEngine.Video.Tests/        Cutback's tests in plain Assert; never runs ffmpeg or loads a model
MainframeEngine.Editor/Src/Video/         the mode's UI (below)
MainframeEngine.Editor/Content/Editor/    video.rml, video_export.rml; the toolbar's video group in toolbar.rml

• Core is copied file for file. The changes are the namespaces (Cutback.Core → MainframeEngine.Video, Cutback.Media → MainframeEngine.Video.Media, Cutback.Analysis → MainframeEngine.Video.Analysis), the project extension, CutbackProject → VideoProject and FfmpegNotFoundException → FfmpegMissingException (the engine already has a public FfmpegNotFoundException). TempSession’s folder is MainframeVideo.
• SegmentEditor holds the edit-session rules from Cutback’s view model, so the UI never reimplements them: one edit is one undo step and an edit that changes nothing leaves none; a boundary drag is one step; a drawn section takes the opposite state of where it was anchored; dirty means “differs from the last save”.
• DeliveryEncoder picks export’s H.264 encoder by probe-encoding a tiny clip: libx264, then the platform’s hardware encoder, then libopenh264, so export works on an ffmpeg built without x264. The probe is shared by concurrent callers, each candidate has a 10 s timeout, and a cancelled or failed probe is evicted so the next export probes again.
• MediaProbe has no FFMpegCore: it runs ffprobe -v error -print_format json -show_format -show_streams and parses the JSON (FfprobeJson), falling back to the stream duration when the format has none.
• PreviewDecoding builds the preview’s decode arguments. The preview is at most 960 px wide (rounded down to even) and 30 fps.
• ModelStore takes the editor’s user-data path (~/.mainframe/models) instead of Cutback’s CreateDefault().
• Dependencies: System.Text.Json, and Whisper.net plus Whisper.net.Runtime 1.9.1 (MIT; whisper.cpp is MIT). The runtime package brings native libraries per platform, with Metal on macOS.

Editor side, MainframeEngine.Editor/Src/Video/:

Type	Role
VideoDocument	One project: VideoProject, SegmentList + SegmentEditor, capture sidecar, transcript, waveform. Open (video or .mfcut/.cutback), save, detect, transcript and filler cuts, export transcript. Main thread only.
VideoTab : IEditorTab	A document plus its preview, timeline (view, state, controller, canvas in a SubViewport), notice and jobs. Mode is EditorMode.Video.
VideoTimelineView	Zoom, pan, hit-testing and ruler maths. Pure.
VideoTimelineCanvas	An EditorCanvas port of TimelineControl’s draw pass: segments, reasons, waveform, boundaries, pending section, ruler, markers, playhead.
VideoTimelineController	The timeline gestures. One per document.
VideoPlaybackPlan	The kept ranges from the playhead, contiguous ones merged, laid end to end on an output timeline and mapped back to source time. Pure.
VideoPreview	ffmpeg decoders into a Texture2D in a SubViewport, with an AudioStreamGenerator voice as the clock. Decoders come from an IVideoDecoderFactory, so tests use fakes.
TranscriptPanel, TranscriptMarkup	The transcript column: RmlUi word spans with the cut state, gestures and context menu.
VideoJob / VideoJob<T>	Background work polled each frame: waveform, silence detection, model download and transcription, export. VideoJob.Start<T>(name, work) starts one (a static on the non-generic class, CA1000).
VideoView ([Tool] node)	Per-frame driver: places and publishes engine://video-preview and engine://video-timeline, routes pointer and keys, polls jobs, starts detection, transcription and export.
VideoPanel + video.rml	The video-mode view: empty state with recent videos, preview, transcript, notice line, timeline, splitters.
ExportVideoDialog + video_export.rml	Output path, Precise/Fast, Export.
VideoExport, VideoPaths, VideoFfmpeg, VideoFormat	Export request and defaults; same-file checks that protect the recording; which ffmpeg; m:ss.t formatting.

Settings live in EditorSettings (Video* properties) and are edited in the Editor Settings dialog’s Video section.

Modes

EditorMode { Game, Video, Music } lives on EditorWorkspace (music mode: Editor modes). EditorWorkspace.SetMode:

1. Swaps the layout. Game mode is the usual editor. Video mode hides the Scene tree, Inspector and FileSystem (releasing their focus) and the Output unless View › Show/Hide Output is on, and shows VideoPanel over the viewport panel’s view area, below its tab strip. The transcript width (320 dp) and timeline height (180 dp) persist in the layout file.
2. Swaps the menus. Game: File, Edit, View, Project, Run, Help. Video: File, Edit, View, Video, Help. EditorCommands.MenuItems returns the video tables in video mode; command ids are shared where the meaning is the same (file.save, edit.undo) and a video tab handles them first.
3. Swaps the toolbar group. The Game|Video toggle sits near the right end of the toolbar in both modes (before Documentation, the update badge and the fps readout).
4. Filters the tab strip. Game mode shows scenes, songs and UI previews; video mode shows video tabs. Each mode remembers its active tab. Tabs of the hidden mode stay open, and a video tab pauses when it is hidden (playback stops, its gesture is cancelled and its viewports stop rendering).
5. Persists the mode as EditorSettings.LastMode, so the editor reopens in the last mode.

Entering video mode. The toolbar toggle, View › Switch to Video Mode, and automatically when opening a video (.mp4 .mov .mkv .webm), .mfcut or .cutback from File › Open, Recent Videos, the FileSystem panel (double-click; the files have a video icon), the QA open verb, the recording dialog’s Open in Video Editor, or the Project Manager’s Video Editor button.

Closing the last video tab stays in video mode, on the empty state. Closing a tab activates a neighbour of the same mode, never a tab of the other mode, so closing never switches modes.

Without a project. Video mode needs no game project: Recent Videos are their own list (EditorSettings.RecentVideos, 10 entries, 5 in the File menu), and opening a recording never calls EditorSession.UseProjectOf (recordings live in the user-data folder, and switching projects would throw while scene tabs are open).

Project switches leave video tabs alone. Open Project, File › Project Manager and Close Project ask about and close the game mode’s tabs only (EditorSession.CloseAll(EditorMode.Game)): video tabs stay open, unsaved changes and all, and their jobs (detection, transcription, export) keep running. EditorSession.OpenProject refuses a switch only while game tabs are open. Quit still asks about every unsaved tab, video ones included. Entering game mode with no project and no game tab (the editor started in video mode) opens the Project Manager.

Shortcuts in video mode (EditorWorkspace.VideoShortcutFor, after the tab’s own keys):

• Space plays and pauses, Home goes to the start, Delete/Backspace dissolves the hovered region;
• Cmd/Ctrl+O open, S save, Shift+S save as, W close tab, Q quit, Z undo, Shift+Z or Y redo, E export; F1 documentation;
• nothing else: no gizmo, view, Play or Record keys (F10 does nothing).

The video-mode screen

• Menus:

  • File: Open… (Cmd+O), Recent Videos (up to 5), Save, Save As…, Export Video… (Cmd+E), Export Transcript… (enabled with a transcript), Close Tab, Quit.
  • Edit: Undo, Redo, Delete Region, Video Settings… (opens Editor Settings scrolled to its Video section).
  • View: Show/Hide Transcript, Show/Hide Output, Switch to Game Mode.
  • Video: Play/Pause, Transcribe, Remove Filler Words, Detect Silence, Detect Idle Gameplay.

• Toolbar. Play/Pause and Stop (pause and go to the start), the position (m:ss.t / m:ss.t), then Transcribe, Remove fillers, Detect silence and Detect idle gameplay. On the right: “Kept m:ss.t of m:ss.t”, Export, and the Game|Video toggle, followed by the editor’s Documentation button, update badge and fps readout.

  • Without a video tab every video button is disabled, and the position is hidden.
  • Detect idle gameplay is disabled without a sidecar; its tooltip says why.
  • Remove fillers is enabled without a transcript: it transcribes first and cuts the fillers when the words arrive (while a transcription runs, it asks that one to cut them).
  • Transcribe, Detect silence and Export show “Cancel n %” while their job runs, and pressing it cancels the job. Transcribe shows “Downloading model n %” while the model downloads.

• Tab strip: the viewport panel’s own strip, filtered to video tabs; the title shows * when unsaved.

• Panels:

  • Preview: fitted to the video’s aspect, with black bars. The image is sized in code (VideoPanel).
  • Transcript: on the right, 320 dp by default, resizable with a splitter; View › Show/Hide Transcript hides it, and a finished transcription or filler cut shows it again. Before a transcript exists it says “No transcript yet. Transcribe to edit by text.”
  • Timeline: at the bottom, 180 dp by default, resizable.

• Notice line, one amber line above the timeline: open warnings (bad sidecar, source changed), the last operation’s result (“Cut 3 stretches of idle gameplay, 0:42.1 removed.”, in Cutback’s wording), cancellations, and “ffmpeg not found: Detect Silence needs it.” followed by an Editor Settings link (video.settings). Opening a recording without ffmpeg has no tab to hold a notice, so that one is a message box with a Video Settings… button.

• Empty state (no video tab): “Open a recording (File › Open…) or record one in Game mode (F10)”, and the Recent Videos list.

• Colours. The timeline uses Cutback’s palette as Vector4 constants in VideoTimelineCanvas:

  Colour	Value	Colour	Value
  ruler	#18181C	body	#121215
  kept	#1D2E4D	kept hover	#26406A
  removed	#1F1F24	removed hover	#2A2A31
  kept wave	#6FA3F0	removed wave	#45454E
  boundary	#C8C8D2 at 0xB0 alpha	active boundary	#FFD166
  section fill	#FFD166 at 0x38 alpha	playhead	#FF5C5C
  tick	#4E4E58	label	#9A9AA6
  reason	#7C7C88	marker	#B48CFF

  The chrome uses the editor’s theme.rcss.

Behaviour

Preview and playback

• Decoders. VideoPreview runs one video decoder (raw RGBA at the preview size and rate) per kept range, and one audio task that decodes the ranges one after another (f32le, stereo, at AudioServer.SampleRate).
• Gapless video. The next range’s decoder starts 1.0 s before the current range ends (at most three decode at once), and frames switch at the boundary without a seek. Contiguous kept ranges are merged into one, so a seamless join never restarts a decoder.
• Gapless audio. All audio goes into one AudioStreamGenerator voice with a 1.0 s ring, on the master bus at int.MaxValue priority with ProcessMode.Always. Each range is pushed after the previous one (one producer, the ring’s rule), with the export’s 8 ms fades at every splice.
• Clock. The voice’s consumed frames are the clock, in output seconds; VideoPlaybackPlan maps them back to source time for the playhead and the frame to show. Without an audio device a stopwatch is the clock.
• Threads. Starting ffmpeg takes milliseconds, so only the user’s own Play starts a decoder on the main thread: prefetched readers, scrubs and the audio task start their own on the pool, and stopped decoders are killed on the pool. The texture and the voice are touched only on the main thread.
• Buffers. Each of four stream slots owns six frame buffers, allocated on first use and reused; a full pool blocks its reader, which back-pressures ffmpeg.
• Edits while playing. The plan is rebuilt from the playhead when the document’s version changes, so a new cut is skipped. During a boundary drag the tab holds the version it plays: each change would kill and respawn the decoders, so the restart happens once, when the drag ends.
• Opening a tab shows its first frame: the tab scrubs to 0 when it opens, so the preview is never black.
• Stopping. Playback stops at the end of the last kept range, and pauses when the tab is hidden, the mode switches or an export starts. Closing the tab kills every decoder.
• Play from the end. Play starts over from 0 when no kept footage follows the playhead: where playback stopped on a recording whose tail is cut, inside a trailing cut, or at the very end.
• Scrubbing while paused decodes one frame (-ss t -frames:v 1); while one runs, only the newest request waits.
• Texture. One Texture2D in its own SubViewport, published as engine://video-preview, updated with SetPixels at most once per displayed frame.
• Failures. A failed decoder logs [Video] Preview decode failed: … and pauses. A preview problem never opens a dialog.

Timeline

Cutback’s gestures with Cutback’s constants: the ruler is 22 dp; a boundary grab is within 6 dp; a drag starts after 4 dp; the minimum view is 0.25 s; boundary snapping looks within 20 ms; the wheel zooms 1.25 per notch; ruler labels are at least 80 dp apart. Only the left button edits, and a gesture keeps the pointer until release wherever it moves.

• Click a region to toggle it. It becomes manual.
• Drag a boundary to move it. It snaps to the quietest waveform bucket on release, and the whole drag is one undo step.
• Drag in the body to draw a section with the opposite state of where the drag started.
• Shift+drag pans. Press or drag the ruler to scrub.
• The wheel zooms about the cursor; Shift+wheel or a horizontal wheel pans (in the song tab’s direction).
• Right-click › Delete, or Delete/Backspace over a region, dissolves it into its neighbours. The hover is re-tested after every edit and cleared when the pointer leaves the timeline or the tab changes, so Delete never hits a region the pointer has left.
• While playing, the view follows the playhead and re-centres when the playhead leaves it.
• Losing the pointer (another tab or mode activating) ends a boundary drag where it is, as one undo step, and drops a section being drawn. Undo or redo during a drag cancels the gesture first, so the drag’s step is never lost.
• Ruler intervals are 0.1, 0.5, 1, 2, 5, 10, 15, 30 s and up; sub-second majors are labelled in tenths (0:01.5), since whole seconds would repeat. There is no 0.25 s step. Labels are cached, so a steady view allocates nothing.

Transcripts

• Transcribe runs WhisperTranscriber in a VideoJob:

  1. If the model is missing, it downloads it into ~/.mainframe/models first (the first half of the progress; the button says “Downloading model n %”). This is the editor’s only network access for video. Each download writes its own <model>.<id>.part and moves it into place when complete; a .part left by an interrupted download (untouched for an hour) is deleted the next time a model downloads.
  2. It extracts 16 kHz PCM with ffmpeg and runs Whisper with Cutback’s disfluent prompt and DTW anchors.
  3. The words go into the project’s transcript (saved in the .mfcut); the notice says “Transcribed n words.” or “No speech was recognised.”.

  A model that fails to load is deleted when it looks truncated, so the next run downloads it again. When it is Whisper’s native library that failed to load (missing, the wrong architecture), the model is kept and the error says “The speech recognition library could not be loaded.”

• Model choice: Video Settings, tiny.en (78 MB) to medium.en (1.5 GB); the default is base.en (148 MB).

• Transcript panel. Paragraphs break after 2 s pauses; one <span> per word, struck through when cut (TranscriptView.IsCut); the current word is highlighted. The panel rebuilds its markup only when the transcript changes; an edit updates the cut class of the changed spans, and nothing changes mid-drag.

  • Click a word to cut it, or restore it if struck. Drag across words to set the run to the opposite state of the first word. Cmd/Ctrl+click plays from the word. Right-click offers Play from here and Cut/Restore.
  • Word edges snap within ±40 ms, and every edit is one undo step (SetRange, manual).

• Remove Filler Words runs FillerDetector → FillerSpanLocator (envelope bursts around DTW anchors) → FillerCutPlanner → ApplyFillerCuts, as one undo step that never touches manual edits. Without a transcript it transcribes first. The word list is in Video Settings, with Cutback’s defaults.

• A transcript made before anchors existed still works with heuristic spans, and the notice suggests transcribing again. Before the waveform has loaded the anchors cannot be located either; the notice then says “The waveform is still loading; filler cuts use Whisper’s rough timing.” instead.

• Export Transcript… writes .txt or .srt (TranscriptExporter), with times remapped by OutputTimeline to match the exported video.

Detection

• Detect Silence runs ffmpeg’s silencedetect in a VideoJob with the settings captured when it starts, then SilenceCutPlanner → ReplaceAutoSegments, as one undo step that keeps every non-auto segment. Defaults: padding 60 ms, min silence 400 ms, threshold −34 dB, min keep 120 ms.
• Detect Idle Gameplay reads the .mfcap.json sidecar: GameplayCutPlanner → ReplaceOriginCuts(Gameplay), as one undo step. Defaults: min idle 3000 ms, padding 500 ms, min keep 1000 ms, marker window 1500 ms. Cutback’s rules: idle only in live recordings; loading, pause and Skip cut exactly; Keep never cut; markers protect the footage around them.
• The results use Cutback’s sentences, but report the kept time the run actually removed (the kept duration before minus after), not the sum of the planned cuts, which can overlap footage already cut by hand or by the other detector: “Detected 2 silences, 0:02.8 removed.” and “Cut 1 stretch of idle gameplay, 0:05.5 removed.”; when nothing changed, “Detected 1 silence; all were already cut.” and “Found 1 stretch of idle gameplay; all were already cut.”; a re-run that gives footage back says “restored”.

Export

• Export Video… opens ExportVideoDialog (nothing to export when every segment is cut, which the notice says):
  • The output defaults to <video>-cut.mp4 beside the source, numbered if taken; the folder button opens the save picker. The format follows the extension: .mp4 .mov .mkv .webm; any other is refused with a readable message.
  • Precise (the default) re-encodes with DeliveryEncoder’s choice: libx264 at CRF 20, else hardware or OpenH264 at 0.1 bit per pixel per frame. Audio is AAC 192k, and the filter graph goes in a file.
  • Fast stream-copies with keyframe-snapped starts, labelled “approximate: cuts snap back to keyframes”. It is disabled for .webm.
  • A typed path that exists asks “Replace file?”; a picked one was confirmed by the picker.
• Running. The request is snapshotted on the main thread, so edits during the export do not touch it; the preview pauses. The Export button reads “Cancel n %”. Cancelling kills ffmpeg and deletes the partial file.
• Finishing. It is reported by how the job ended, not by whether Cancel was pressed: success shows “Export finished” with Show in Folder and Close; failure shows the ffmpeg error with the tail of its stderr; a cancel says “Export cancelled.”.
• Closing a tab cancels its export; quitting the editor cancels exports and waits up to 2 s before removing the scratch folder.

Protecting the recording

The source is opened read-only and never written. Save As, Export and Export Transcript resolve their output path component by component (VideoPaths.SameFile: a symbolic link anywhere in the path counts, /tmp and /var on macOS included) and refuse the source recording. Save paths are also normalised to one .mfcut (trim.mp4 saves as trim.mfcut, x.mfcut.mfcut collapses).

Opening, saving, undo

• Opening a video probes it and refuses it with “has no audio track” when it has none (export and the preview clock splice audio). It is hashed (SourceHash) and starts as one kept segment. The sidecar is read when present; a bad or newer one is a notice, never a failed open. The waveform is extracted by a job, so the tab appears at once.
• Opening a .mfcut or .cutback uses the saved source info without probing; it is refused, naming the path, when the source is missing, and opens with a warning when the source’s hash changed. A .cutback opens unsaved as <name>.mfcut and is never overwritten.
• Opening a file that is already open activates its tab.
• Save writes atomically; an unsaved recording asks where, suggesting <video dir>/<video name>.mfcut; Save As moves the project.
• Undo is SegmentEditor: one edit is one step, a boundary drag is one step, and undoing back to the saved partition is clean. The limit is 100 steps (Video Settings, 10–1000).
• Unsaved changes. Close and Quit ask Save / Don’t Save / Cancel through the editor’s unsaved-changes flow.

Settings (Editor Settings › Video)

Setting	Default	Range
ffmpeg	blank: MAINFRAME_FFMPEG, then PATH, then the usual install folders	a folder holding ffmpeg and ffprobe, or one of the two files
Whisper model	base.en	tiny.en, base.en, small.en, medium.en
Filler words	Cutback’s list	comma-separated; nothing usable falls back to the defaults
Silence: threshold / min silence / padding / min keep	−34 dB / 400 / 60 / 120 ms	−80–0 dB / 50–5000 / 0–500 / 0–2000 ms
Gameplay: min idle / padding / min keep / marker window	3000 / 500 / 1000 / 1500 ms	500–60000 / 0–2000 / 0–10000 / 0–10000 ms
Undo history	100	10–1000

Every value clamps in its setter. The text fields commit on Enter or when they lose focus (Apply commits the focused one), so typing “100” or “-40” is never rewritten mid-keystroke. Apply keeps the last mode and the recent videos as they are now, not as they were when the dialog opened: neither is edited in the dialog, and both can be saved while it is open. The ffmpeg setting also serves Play and Record: the editor passes it to the game as --ffmpeg (the ffmpeg inside a folder, or beside an ffprobe).

Which ffmpeg runs. Opening a recording locates ffmpeg (VideoFfmpeg.Locate) for the probe, the waveform and the preview. Detect Silence, Transcribe and Export locate it again when they start, so a changed setting reaches tabs that are already open; when nothing is found then, they use the one the tab opened with. The preview keeps the ffmpeg its tab opened with (its decoder factory is built at open); reopen the tab to change it. A job whose ffmpeg cannot be started (the binary has gone since it was found) gives the same “ffmpeg not found” notice with the Editor Settings link, not a failed-operation dialog.

File format: .mfcut

Cutback’s project JSON, schema version 3, unchanged:

{ "version": 3,
  "source": { "path": "/abs/recording.mp4", "sha256": "…", "durationSeconds": 612.44, "width": 1920, "height": 1080, "frameRate": 60.0 },
  "segments": [ { "id": "…", "start": 0.0, "end": 3.21, "enabled": true, "origin": "auto", "reason": null } ],
  "transcript": [ { "text": "so", "start": 1.02, "end": 1.18, "confidence": 0.93, "anchor": 1.05 } ],
  "settings": { "paddingMs": 60, "minSilenceMs": 400, "silenceThresholdDb": -34.0, "minKeepMs": 120 } }

• Segments partition [0, duration]. The invariant is enforced and tested (SegmentList).
• origin is auto | manual | claude | filler | gameplay. Each detector replaces only its own cuts, and manual edits survive every detector.
• Paths. The source path is absolute. The .mfcut lives next to the video by default, usually the recordings folder in user data; one inside a project folder appears in the FileSystem panel with a video icon.
• Compatibility. The engine owns the format from now on. A .mfcut renamed to .cutback opens in Cutback today, but that is not promised.

Licensing

• The copied code is MIT. Cutback.Core and Cutback.Media were already MIT. Cutback.Analysis and the Cutback.App logic this ports (TimelineControl’s draw pass and gestures, TranscriptControl’s gestures, the view model’s flows) are GPL-3.0 in Cutback’s repository; their sole author relicensed them as MIT for this copy (2026-10-13). The UI parts are reimplemented on the engine’s canvas and RmlUi; no Avalonia code is copied.
• MainframeEngine.Video/LICENSE-CUTBACK keeps the line Copyright (c) 2026 Cutback contributors. THIRD_PARTY_NOTICES.md lists the Cutback code, Whisper.net and whisper.cpp (all MIT, editor only).
• ffmpeg remains the user’s, run as a separate program and never linked (ADR 0190).
• Shipped games are unaffected: MainframeEngine never references MainframeEngine.Video.

Testing

• Tests/MainframeEngine.Video.Tests (part of just test): Cutback’s Core, Media and Analysis tests in plain Assert (the partition invariant, SetRange, Dissolve, Restore, EditHistory; the silence, filler and gameplay planners, ReplaceOriginCuts, the sidecar reader; project round-trips, migration, hashing; the transcript view and exporters, the output timeline; locator, peaks, parsers, capabilities, filter graphs, keyframe snapping; word assembly and model metadata), plus SegmentEditor, DeliveryEncoder, PreviewDecoding and the ffprobe JSON parser. Nothing runs ffmpeg or loads a model.
• Editor tests (mostly Tests/MainframeEngine.Editor.Tests/Video/): modes (layout, menus, tab filter, persistence, auto-switch, closing), VideoTab in the session (open, save .mfcut, .cutback import, close prompt, undo during a drag), the timeline view, gestures and canvas, the playback plan, the preview with a fake decoder factory (kill on pause, close and mode switch; rebuild on edit; the held version during a drag; the first frame), the transcript panel, transcription and filler flows with a fake transcriber, the export dialog and job with a fake runner, the same-file checks, Video Settings (clamps, typing), the recording dialog’s Open in Video Editor, and 0 B idle video frames.
• Render goldens (EditorRenderTests, MoltenVK and lavapipe, no ffmpeg needed, so CI checks them):
  • editor-video-empty: video mode’s empty state.
  • editor-video-timeline: a tab over a document built in code (VideoGolden: segments of every origin, a synthetic waveform, markers, a transcript with struck words, colour bars from a fake decoder), fitted to its 60 s. Its steady frames then get the allocation gate (0 B over 300 frames).
• QA, by hand: just qa-editor Tests/QA/video.qa over the committed 12 s fixture Tests/QA/Fixtures/video/sample.mp4 (build/make-video-fixture.sh: a test pattern whose 440 Hz tone drops out from 4 to 6 s, with a hand-written sidecar: loading 7–9 s, a marker at 10 s). It opens the fixture, runs Detect Silence and then Detect Idle Gameplay (so each capture shows more cut: the idle cut, 3.5–9.0 s, takes in the silence cut), transcribes with tiny.en (video set whisper-model tiny.en), undoes (the idle cut comes back), plays past the silence cut and switches modes. Captures: video-01-empty, video-02-opened, video-03-silence, video-04-idle, video-05-transcript, video-06-undo, video-07-playing, video-08-game-mode. It waits on conditions, not frame counts: wait-for video-jobs and wait-for video-position.

Known limits

• Preview memory. Four stream slots of six frame buffers each: up to about 48 MB at 960×540.
• Per-frame texture re-upload. The preview’s CPU Texture2D re-uploads (and recreates its GPU image) once per displayed frame, at most 960×540 and 30 fps. G16’s planned VideoTexture would remove that.
• Hard links to the recording are not detected by the same-file checks (a hard link is a second name for the same data); symbolic links are.
• Crash recovery covers scenes only: WriteRecoveryCopies does not write video projects.
• No drag-in from the OS: the engine does not deliver SDL drop events yet.
• Whisper is trained to drop disfluencies; recall of “um”s depends on the prompt (Cutback’s known issue, same mitigation). The first transcription downloads 78 MB to 1.5 GB, depending on the model.

Changes from the proposal

The proposal was agreed on 2026-10-13; these changed while it was built:

• Remove Fillers is enabled without a transcript (it transcribes first); the proposal said it was disabled.
• Closing the last video tab stays in video mode; closing never activates a tab of the other mode.
• “ffmpeg not found” for a tab’s operation is a notice with an Editor Settings link, not a dialog.
• Save As, Export and Export Transcript refuse the source after resolving links component by component.
• Undo or redo during a drag cancels the gesture first; the preview holds its version during a boundary drag.
• The preview starts and kills decoders off the main thread, merges contiguous ranges, and shows the first frame on open.
• The ruler has no 0.25 s interval; sub-second labels show tenths.
• The Video Settings text fields commit on Enter or blur.
• Jobs start with VideoJob.Start<T>; DeliveryEncoder’s probe is shared, time-limited and evicted on failure.
• The view menu has Switch to Game/Video Mode items, not a toggle; the Edit menu opens Video Settings.
• Detection notices report the kept time a run actually removed (Cutback sums the planned cuts), and say when all of it was cut already.
• The recording dialog offers Open in Video Editor first and keeps Open in Cutback.

Related docs

• Editor (modes, shortcuts) · Gameplay recording · Audio · Testing
